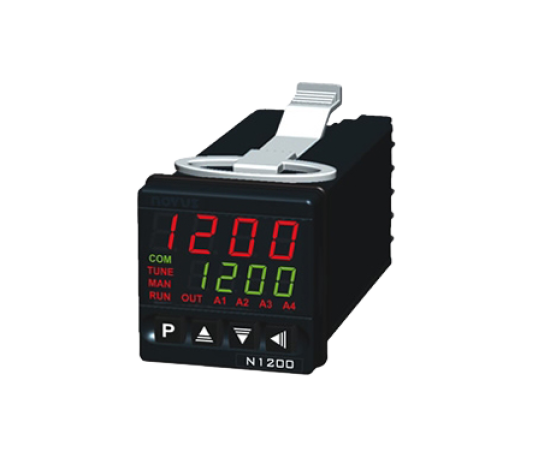

N1200 is an advanced self-adaptive PID controller with an algorithm that constantly monitors the process performance and adjusts PID settings in order to always obtain the best possible control response. A single model is able to accept most industrial sensors and signals and provides all output types required to control different processes.
All controller configuration can be achieved from the front panel without performing any hardware change.
- Sensor input: Pt100 (-50 to 300ºC), Pt1000 (-200 to 530°C), or thermistor (-50 to 120ºC)
- IP65 enclosure frontal protection
- Display indication does not change during defrost cycles
- Minimum ON and OFF durations accessed by the user
- Relay SPDT: 1 HP 250 Vac / 1/3 HP 125 Vac (16 A Resisitive) (up to 1HP compressors)
- Resolution: 0.1°C from -19.9 to 199.9°C
- Accuracy: ± 0.5°C/°F ±1 digit
- Adjustable hysteresis
- Sampling: 1.5 per second
- Working temperature: 0 to 50°C
- Power supply: 85-250Vac (internal) or 12-24Vac/dc
- Digital communication via RS485 with Modbus RTU protocol (optional)
- Dimensions: 75x33x75mm
