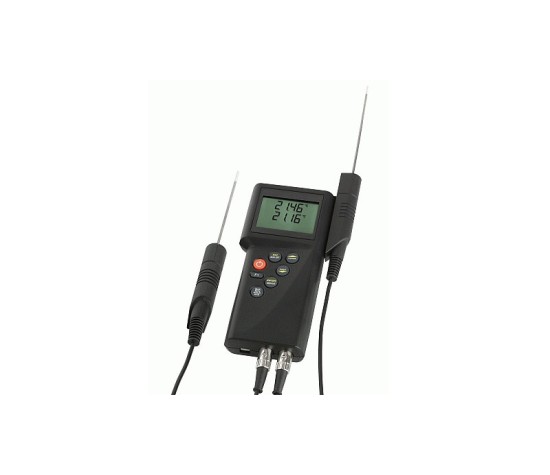

P755Log-EX explosion proof thermometer
Type for measuring in explosion endangered areas (temperature range -200°C...+850°C). EX-mark: EEX ib IIB T4
High precision data logger for temperature (±0,03), with memory for 6.000 measurements. For traceability we recommend to order those instruments with a calibration certificate
Ideal for evaluating temperature sources such as calibration tapes, block calibrators, lime cabinets or temperature-critical processes. You can operate the instrument either with a battery or with a power supply. The measurement and storage cycle can be adjusted from one second to 30 minutes. By using our precision probes with calibration code, you can achieve a measurement uncertainty of ±0.03°C for the measuring chain. The measuring system is ideally suited for use as a standard for use. To trace back to national or international standards, we recommend using a DKD calibration certificate. With the help of the optional readout software + USB cable, you can create an ASCII file on your PC that can be imported into your applications (Excel, Access...).
Technical data
Inputs: 2-channel, Pt100
Measuring range Pt100: ±0,03°C from -100°C...+150°C
±0,05°C from -200°C...+200°C
otherwise 0,05 %
Resolution: 0,01°C from -200°C...+200°C, otherwise 0,1°C respectively 0,1 %
EX-mark: EEX ib IIB T4
Memory: 6000 measurements
Measuring interval: 1 second... 30 minutes
Output: RS232-interface
Connectors: DIN 8-pole
Working temperature: 0°C...+40°C
Display: 2-line LCD
Housing: plastic
Dimensions: 200 x 93 x 44 mm (LxBxH)
Weight: 600 g
Power supply: 9 V battery
Batterie life: appr. 8 p.m.
