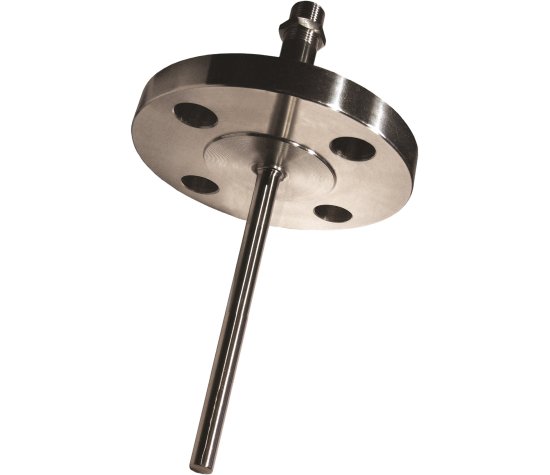

These Thermo Pockets are simplistic in installation and operation. They consist of a stainless steel protective sheath which is welded around the circumference upon the Flange. There is also an internal thread which accommodates the assembly of the sensor via the instrument thread connection.
| Style | Fabricated Pocket Flanged |
|---|---|
| Process Connection | Specify Flange Type & Size |
| Instrument Thread | Specify Thread |
| Immersion Length | Length in mm Under Flange |
| Shaft Style | Straight |
| Shaft Diameter | Specify in mm |
| Pocket Internal Diameter | Dimension in mm |
Process Flange Connection
- ANSI ½” to 3” 150lb to 1500lb
- DN 10 to 80 PN6 to PN80
Instrument Thread
- ½”BSP
- ½”NPT
Insertion length
- 20 … 3000 mm
Well tube Diameter
- Standard 11mm diameter 7mm internal diameter
- 12mm diameter 9mm internal diameter
- Customisable upon request
Well tube material
- AISI 316L (1.4404)
Surface roughness wetted parts
- Ra ≤ 0.8 µm
Performance characteristics
- Max. flow velocity
- See Datasheet
- Thermal response time
- See datasheet
Certification Options
- See 3.1b Material Cert
- Surface Finish Cert
