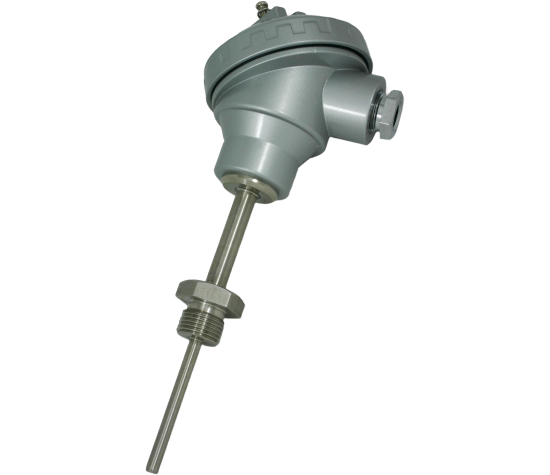

This sensor assembly is a very common one used in many process applications. It consists of a Pt100 sensing element housed in a stainless steel protective sheath with a fixed process thread & a 50mm lag below the termination head which can be Aluminium, Plastic or Stainless Steel. 6mm would be a standard diameter for this probe and some stock lengths are 100mm up to 300mm in increments of 50mm. Other diameters & lengths are also available.
Performance Characteristics
- Max. Flow Velocity
- 40 m/s , gases
- 5 m/s , liquids
- Process Pressure
- ≤ 25 bar stem ≥ Ø6 mm
- Pt100 accuracy class (EN 60751)
- A (± 0.15 °C at 0 °C)
- ± (0.15 + 0.002 × t)°C
- 1/3 B (± 0.1 °C at 0 °C)
- ± 1/3 × (0.3 + 0.005 × t)°C
- 1/10 B (± 0.03 °C at 0 °C)
- ± 1/10 × (0.3 + 0.005 × t)°C
- Pt1000 accuracy class (EN 60751)
- A (± 0.15 °C at 0 °C)
- ± (0.15 + 0.002 × t)°C
- 1/3 B (± 0.1 °C at 0 °C)
- ± 1/3 × (0.3 + 0.005 × t)°C
- Thermal Response Time, T50
- ≤ 1.5 s , Ø4 mm
- ≤ 6.1 s , Ø6 mm
- ≤ 7.6 s , Ø8 mm
- ≤ 11.1 s , Ø10 mm
- Operating Temperature
- Standard -70°C + 250°C
- High Temperature 600°C
- Cryo -196°C + 250°C
- Sensor Length
- 20 … 3000 mm
- Sensor Tube Material
- AISI 316L (1.4404)
- Surface Roughness Wetted Parts Ra ≤ 0.8 µm
- Ambient Conditions
- Degree of Protection (EN 60529)
- IP 67
- Degree of Protection (EN 60529)
- Storage Temperature
- -40°C + 80°C
- Humidity
- ≤ 100 % RH , condensing
- Vibration (sinusoidal) (EN 60068-2-6)
- 1.6 mm p-p (2 … 25 Hz), 4 g (25 … 100 Hz), 1 octave / min.
- Output Signal
- Without Transmitter
- 1 x Pt100, 3-wire
- 1 x Pt100, 4-wire
- 2 x Pt100, 3-wire
- 1 x Pt1000, 3-wire
- 2 x Pt1000, 3-wire
- With Transmitter
- 4 … 20 mA , 2-wire
- 4 … 20 mA , 2-wire + HART®
- Without Transmitter
- Compliance and Approvals
- EMC
- EN 61326-1
- EMC
- Housing
- Style Selectable
- Material Selectable
- Process Thread Configurable Thread Selectable
