Measures humidity, temperature, dewpoint or delta t
Dual channel 4/20mA output
Duct or Wall Mount Versions
LCD Display option
User replaceable digital sensor
Datalogging function

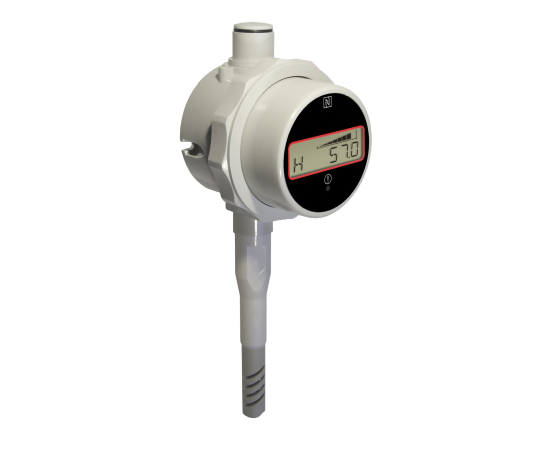

The SEM710HM and SEM710HM/DP are dual channel loop powered transmitters that measure relative humidity and temperature. Two outputs are available, as default they are configured for humidity and temperature. However, they can be programmed to measure, dew point or delta T as input source.Also one input source can be measure on both loops acting like a signal splitter. For example you can output humidity on both loops and send to different equipment.
The SEM710HM/DP has an optional LCD display and can show any of the process values (%RH, temperature, dew point or delta temperature) on a 6-digit LCD screen.
The humidity sensor itself is a digital sensor. This allows our unique feature of simply unplugging the sensor if required and replacing with a new one without having to return the product to the supplier.Using our popular SCH4 connection head, the SEM710HM humidity and temperature transmitter can be ordered for duct, wall or remote sensor mounting. The product default setting is 0 to 50°C and 0 to 100% RH. There is also an in built datalogger.
