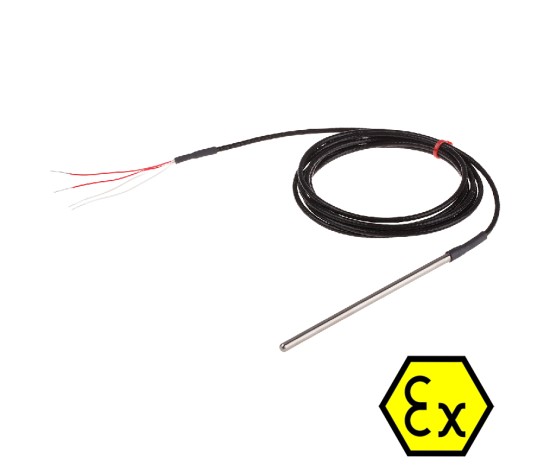

This sensor assembly has is used within various applications & environments. It consists of a Pt100 sensing element housed in a stainless steel 316L protective sheath . The extension cable can be silicon rubber, PVC or PTFE, dependant upon operating conditions. Both the sheath & the cable length can be specified to the required length.
Performance Characteristics
- Pt100 accuracy class (EN 60751)
- A (± 0.15 °C at 0 °C)
- ± (0.15 + 0.002 × t)°C
- 1/3 B (± 0.1 °C at 0 °C)
- ± 1/3 × (0.3 + 0.005 × t)°C
- 1/10 B (± 0.03 °C at 0 °C)
- ± 1/10 × (0.3 + 0.005 × t)°C
- Pt1000 accuracy class (EN 60751)
- A (± 0.15 °C at 0 °C)
- ± (0.15 + 0.002 × t)°C
- 1/3 B (± 0.1 °C at 0 °C)
- ± 1/3 × (0.3 + 0.005 × t)°C
Process Pressure
- ≤ 25 bar stem ≥ Ø6 mm
Operating Temperature
- Standard -70°C + 250°C
- High Temperature 600°C
- Cryo -196°C + 250°C
Thermal Response Time, T50
- ≤ 1.5 s , Ø4 mm
- ≤ 6.1 s , Ø6 mm
- ≤ 7.6 s , Ø8 mm
- ≤ 11.1 s , Ø10 mm
Sensor Length
- 20 … 3000 mm
Sensor Diameter
- Standard 6mm
- 3mm … 12mm (increments of 1mm)
Sensor Tube Material
- AISI 316L (1.4404)
Surface Roughness Wetted Parts
- Ra ≤ 0.8 µm
Ambient Conditions
- Degree of Protection (EN 60529)
- IP 65
Storage Temperature
- 0°C + 100°C
Humidity
- ≤ 98 % RH , condensing
Vibration (sinusoidal) (EN 60068-2-6)
- 1.6 mm p-p (2 … 25 Hz), 4 g (25 … 100 Hz), 1 octave / min.
Output Signal
- Without Transmitter
- 1 x Pt100, 3-wire
- 1 x Pt100, 4-wire
- 2 x Pt100, 3-wire
- 1 x Pt1000, 3-wire
- 2 x Pt1000, 3-wire
- With External Transmitter
- 4 … 20 mA , 2-wire Loop Powered
- 4 … 20 mA , 2-wire + HART® Loop Powered
Cable Options
- PTFE/MFA -196°C + 250°C
- PVC -5°C + 105°C
- Silicone Rubber -50°C + 200°C
- Fibreglass Overbraid -50°C + 400°C
Mechanical Protection Option
- Flexible Conduit Double lock SS 316L 8.5mm diameter
Cable Length
- 0.3….100 meters
Accessories
- Adjustable Union: Thread Selectable
- Flange: 38mm Diameter Duct Flange
- Enclosure: Wall Mount ABS Enclosure
Atex Approval:
II 1 GD
Ex ia IIC T4 Ga
Ex ia IIIC T135°C Da
Ta = -40°C to +80°C
