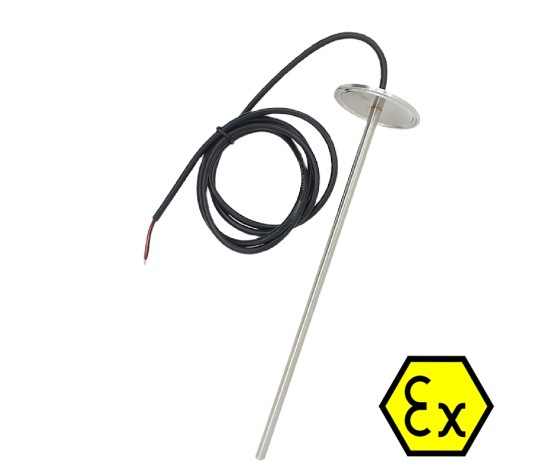

RTM13TCX

Performance Characteristics

• Pt100 accuracy class (EN 60751)
  • A (± 0.15 °C at 0 °C)
  • ± (0.15 + 0.002 × t)°C
  • 1/3 B (± 0.1 °C at 0 °C)
  • ± 1/3 × (0.3 + 0.005 × t)°C
  • 1/10 B (± 0.03 °C at 0 °C)
  • ± 1/10 × (0.3 + 0.005 × t)°C
• Pt1000 accuracy class (EN 60751)
  • A (± 0.15 °C at 0 °C)
  • ± (0.15 + 0.002 × t)°C
  • 1/3 B (± 0.1 °C at 0 °C)
  • ± 1/3 × (0.3 + 0.005 × t)°C

Process Pressure

• ≤ 25 bar stem ≥ Ø6 mm

Operating Temperature

• Standard -70°C + 250°C
• Cryo -196°C + 250°C

Thermal Response Time, T50

• ≤ 1.5 s , Ø4 mm
• ≤ 6.1 s , Ø6 mm
• ≤ 7.6 s , Ø8 mm
• ≤ 11.1 s , Ø10 mm

Sensor Length

• 20 … 3000 mm

Sensor Diameter

• Standard 6mm
• 4mm … 10mm (increments of 1mm)
• Optional Reduced Tip increased sensitivity

Process Connection

• Tri-Clover ½”….4”

Sensor Tube Material

• AISI 316L (1.4404)

Surface Roughness Wetted Parts

• Ra ≤ 0.4 µm

Ambient Conditions

• Degree of Protection (EN 60529)
  • IP 65

Storage Temperature

• 0°C + 100°C

Humidity

• ≤ 98 % RH , condensing

Vibration (sinusoidal) (EN 60068-2-6)

• 1.6 mm p-p (2 … 25 Hz), 4 g (25 … 100 Hz), 1 octave / min.

Output Signal

• Without Transmitter
  • 1 x Pt100, 3-wire
  • 1 x Pt100, 4-wire
  • 2 x Pt100, 3-wire
  • 1 x Pt1000, 3-wire
  • 2 x Pt1000, 3-wire
• With Transmitter
  • 4 … 20 mA , 2-wire Loop Powered
  • 4 … 20 mA , 2-wire + HART® Loop Powered

Cable Options

• PTFE/MFA -196°C + 250°C
• PVC -5°C + 105°C
• Silicone Rubber -50°C + 200°C
• Fibreglass Overbraid -50°C + 400°C

Mechanical Protection Option

• Flexible Conduit Double lock SS 316L 8.5mm diameter

Cable Length

• 0.3….100 meters

Accessories

• Enclosure Wall Mount ABS Enclosure

Atex Approval:

II 1 GD
Ex ia IIC T4 Ga
Ex ia IIIC T135°C Da
Ta = -40°C to +80°C
