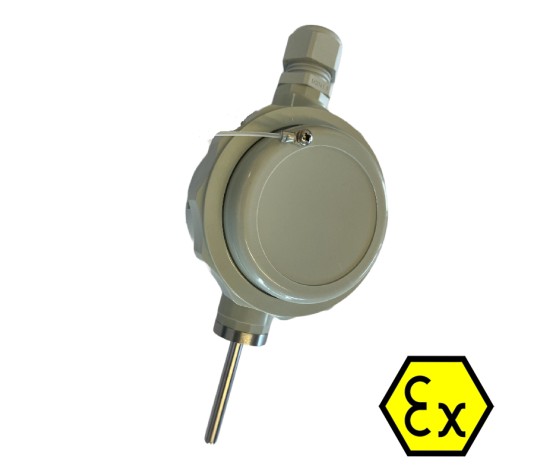

This series temperature sensor is a product designed for measurement of indoor or outdoor environmental temperature. It consists of a Pt100 temperature sensor housed in a 316 L Stainless Steel probe. It has a 6mm diameter stem with a probe length of 50mm. Housed in an ABS connection head.. These probes can be used as stand-alone sensors, or they can be configured with a variety of termination options, and combined with controllers, indicators, or temperature transmitter to create complete measurement systems.
Performance Characteristics
Pt100 Accuracy Class (EN 60751)
- A (± 0.15 °C at 0 °C)
- ± (0.15 + 0.002 × t)°C
- 1/3 B (± 0.1 °C at 0 °C)
- ± 1/3 × (0.3 + 0.005 × t)°C
- 1/10 B (± 0.03 °C at 0 °C)
- ± 1/10 × (0.3 + 0.005 × t)°C
Pt1000 Accuracy Class (EN 60751)
- A (± 0.15 °C at 0 °C)
- ± (0.15 + 0.002 × t)°C
- 1/3 B (± 0.1 °C at 0 °C)
- ± 1/3 × (0.3 + 0.005 × t)°C
Thermal Response Time, T50
- ≤ 6.1 s, Ø6 mm
Operating Temperature
- -25°C + 80°C
Sensor Length
- 50mm
Sensor Diameter
- 6mm
Sensor Tube Material
- AISI 316L (1.4404)
Ambient Conditions
- Degree of Protection (EN 60529)
- IP 67
Storage Temperature
- -25°C + 80°C
Humidity
- ≤ 100% RH, condensing
Vibration (sinusoidal) (EN 60068-2-6)
- 1.6 mm p-p (2 … 25 Hz), 4 g (25 … 100 Hz), 1 octave / min.
Output Signal
- Without Transmitter
- 1 x Pt100, 3-wire
- 1 x Pt100, 4-wire
- 2 x Pt100, 3-wire
- 1 x Pt1000, 3-wire
- 2 x Pt1000, 3-wire
- With Transmitter
- 4 … 20 mA, 2-wire Loop Powered
- 4 … 20 mA, 2-wire + HART® Loop Powered
Compliance and Approvals
- EMC
- EN 61326-1
Housing
- Style SCH4
- Material ABS Plastic
- Dimensions see datasheet
Atex Approval:
II 1 GD
Ex ia IIC T4 Ga
Ex ia IIIC T135°C Da
Ta = -40°C to +80°C
