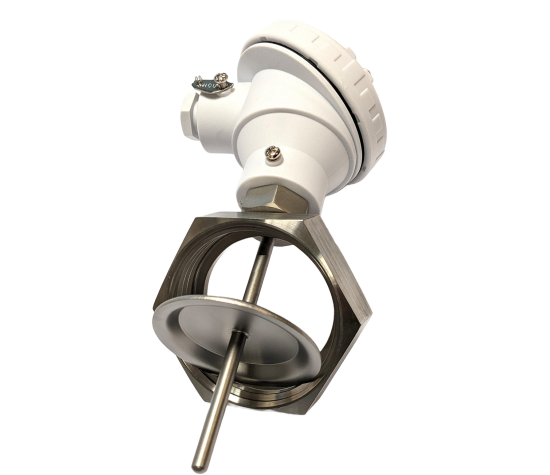

This sensor assembly is generally used within the dairy, brewery & pharmaceutical industry where a sanitary process connection is required. It consists of a Pt100 sensing element housed in a stainless steel protective sheath with a floating Din 11851 style fitting & a lag/standoff. These assemblies are generally of a high surface finish as required for such processes. The termination head which can be Aluminium, Plastic or Stainless Steel.
Performance Characteristics
Max. Flow Velocity
- 40 m/s, gases
- 5 m/s, liquids
Process Pressure
- ≤ 25 bar stem ≥ Ø6 mm
Pt100 accuracy class (EN 60751)
- A (± 0.15 °C at 0 °C)
- ± (0.15 + 0.002 × t)°C
- 1/3 B (± 0.1 °C at 0 °C)
- ± 1/3 × (0.3 + 0.005 × t)°C
- 1/10 B (± 0.03 °C at 0 °C)
- ± 1/10 × (0.3 + 0.005 × t)°C
Pt1000 accuracy class (EN 60751)
- A (± 0.15 °C at 0 °C)
- ± (0.15 + 0.002 × t)°C
- 1/3 B (± 0.1 °C at 0 °C)
- ± 1/3 × (0.3 + 0.005 × t)°C
Thermal Response Time, T50
- ≤ 1.5 s, Ø4 mm
- ≤ 6.1 s, Ø6 mm
- ≤ 7.6 s, Ø8 mm
- ≤ 11.1 s, Ø10 mm
Operating Temperature
- Standard -70°C + 250°C
- High Temperature 600°C
- Cryo -196°C + 250°C
Sensor Diameter
- Standard 6mm
- 4mm … 12mm (increments of 1mm)
Sensor Length
- 20 … 3000 mm
Sensor Tube Material
- AISI 316L (1.4404)
- Surface Roughness Wetted Parts Ra ≤ 0.8 µm
Process Connection
- Configurable Din, SMS, RJT, IDF
Ambient Conditions
- Degree of Protection (EN 60529)
- IP 67
Storage Temperature
- -40°C + 80°C
Humidity
- ≤ 100% RH, condensing
Vibration (sinusoidal) (EN 60068-2-6)
- 1.6 mm p-p (2 … 25 Hz), 4 g (25 … 100 Hz), 1 octave / min.
Output Signal
- Without Transmitter
- 1 x Pt100, 3-wire
- 1 x Pt100, 4-wire
- 2 x Pt100, 3-wire
- 1 x Pt1000, 3-wire
- 2 x Pt1000, 3-wire
- With Transmitter
- 4 … 20 mA, 2-wire
- 4 … 20 mA, 2-wire + HART®
Compliance and Approvals
- EMC
- EN 61326-1
Housing
- Style Selectable
- Material Selectable
