9106b

9106b
9106b
  • SKU: 9106b
  • Label: 9106b

Application

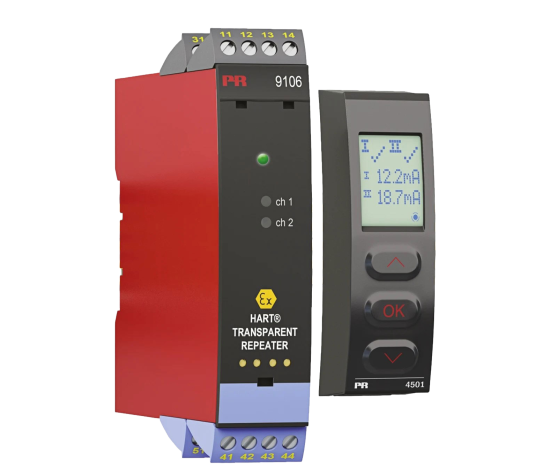

  • 9106B is a 1- or 2-channel isolated 1:1 repeater barrier for intrinsic safety applications.
  • The device supplies 2-wire SMART transmitters and can also be used for 2-wire SMART current sources. HART & BRAIN protocols are supported and are transferred bi-directionally.
  • 9106B can be mounted in the safe area or in zone 2 / Cl. 1, div. 2 and receive signals from zone 0, 1, 2 and zone 20, 21, 22 including mining / Class I/II/III, Div. 1, Gr. A-G.
  • For duplication/migration purposes, the outputs can be sent to two different DCS/PLC/HMI or any monitoring system.
  • In safety applications (SIL loops), the 9106BxBx can be used as a splitter with the following output configuration:
     • When using 9106BxBx in a SIL2 safety function, channel 1 is used for the safety loop. Channel 2 can be used for any non-safety device.
     • For higher safety purposes (SIL 3), 9106BxBx can be used as a splitter for SIL 3 loops. Channel 1 and 2 are then connected to the same safety PLC, where channel 2 is used as a redundant diagnostic channel (for more information, consult the FMEDA Report and the Safety Manual).

Advanced features

  • The PR 4500 detachable display and the green and red front LEDs indicate operation status for each channel.
  • Monitoring of error events and cable breakage on input via the individual status relay and/or a collective electronic signal via the power rail.
  • Suitable for the use in systems up to Performance Level “d” according to ISO-13849.

Technical characteristics

  • High galvanic isolation of 2.6 kVAC.»

Environmental Conditions

Operating temperature

-20°C to +60°C

Storage temperature

-20°C to +85°C

Calibration temperature

20...28°C

Relative humidity

< 95% RH (non-cond.)

Protection degree

IP20

Installation in

Pollution degree 2 & meas. / overvoltage cat. II

Mechanical specifications

Dimensions (HxWxD)

109 x 23.5 x 104 mm

Dimensions (HxWxD) w/ PR 4500

109 x 23.5 x 131 mm

Weight approx.

250 g

DIN rail type

DIN EN 60715/35 mm

Wire size

0.13...2.08 mm2 AWG 26...14 stranded wire

Screw terminal torque

0.5 Nm

Vibration

IEC 60068-2-6

2...13.2 Hz

±1 mm

13.2...100 Hz

±0.7 g

Common specifications

Supply

Supply voltage

19.2...31.2 VDC

Fuse

1.25 A SB / 250 VAC

Max. required power

≤ 1.1 W / ≤ 1.9 W (1 ch. / 2 ch.)

Max. power dissipation, 1 / 2 ch.

≤ 0.8 W / ≤ 1.2 W

Isolation voltage

Test /working: Input to any

2.6 kVAC / 300 VAC reinforced isolation

Analog output to supply

2.6 kVAC / 300 VAC reinforced isolation

Status relay to supply

1.5 kVAC / 150 VAC reinforced isolation

Response time

Response time (0...90%, 100...10%)

< 5 ms

Programming

PR 4500 communication interfaces

Signal dynamics, input

Analog signal chain

Signal dynamics, output

Analog signal chain

SMART bi-directional communication frequency range

0.5...7.5 kHz

Signal / noise ratio

> 60 dB

Accuracy

Better than 0.1% of sel. range

mA, absolute accuracy

≤ ±16 μA

mA, temperature coefficient

≤ ±1.6 μA / °C

Effect of supply voltage change on output (nom. 24 VDC)

< ±10 μA

EMC immunity influence

< ±0.5% of span

Extended EMC immunity: NAMUR NE21, A criterion, burst

< ±1% of span

Input specifications

Current input

Measurement range

3.5...23 mA

2-wire transmitter supply 9106B1x (Uo = 27.5 VDC)

>16 V / 20 mA

2-wire transmitter supply 9106B2x (Uo = 25.3 VDC)

>15 V / 20 mA

Sensor error detection: Loop break 4...20 mA

< 1 mA

Input voltage drop, supplied unit

< 4 V @ 23 mA

Input voltage drop, non-supplied unit

< 6 V @ 23 mA

Output specifications

Current output

Signal range

3.5...23 mA

Load (@ current output)

≤ 600 Ω

Load stability

≤ 0.01% of span / 100 Ω

Current limit

≤ 28 mA

Passive 2-wire mA output

Effect of external 2-wire supply voltage variation

< 0.005% of span / V

Max. external 2-wire supply

26 VDC

Status relay

Relay function

N.C.

Programmable low setpoint

0...29.9 mA

Programmable high setpoint

0...29.9 mA

Hysteresis for setpoints

0.1 mA

Max. voltage

125 VAC / 110 VDC

Max. current

0.5 AAC / 0.3 ADC

Max. voltage - hazardous installation

32 VDC / 32 VAC

Max. current - hazardous installation

1 ADC / 0.5 AAC

of span

= normal measurement range 4...20 mA

Observed authority requirements

EMC

2014/30/EU & UK SI 2016/1091

LVD

2014/35/EU & UK SI 2016/1101

ATEX

2014/34/EU & UK SI 2016/1107

RoHS

2011/65/EU & UK SI 2012/3032

EAC

TR-CU 020/2011

EAC Ex

TR-CU 012/2011

Approvals

ATEX

DEKRA 11ATEX0244 X

IECEx

DEK 11.0084X

UKEX

DEKRA 21UKEX0171X DEKRA 22UKEXYYYY X - PENDING

c FM us

FM16US0465X / FM16CA0213X

INMETRO

DEKRA 16.0001 X

c UL us, UL 61010-1

E314307

c UL us, UL 913

E233311 (only 9106xxx-U9)

CCC

2020322309003231

KCs

21_AV4BO_0167X / 21_AV4BO_0168X (only 9106Bxx-KCs)

EAC Ex

RU C-DK.HA65.B.00355/19

DNV Marine

TAA00000JD

ClassNK

TA24034M

SIL

SIL 2 / SIL 3 certified & fully assessed acc. to IEC 61508
